Hybrid Rollers
Protects the belt from steel housing edges: fibre-filled nylon PA66 bearing housings press-fitted into standard steel conveyor tube. For heavy-duty conveyors where the belt could contact a housing edge, and for inaccessible areas with infrequent inspection.
⌀127–178mm
Tube diameters
⌀25–45mm
Bearing spindles
6305–6309
Deep-groove bearings
4-stage
Sealing system
GF nylon housing · 4-stage seal
SANS 657/3 steel tube
Steel tube.
Press-fitted nylon housings.

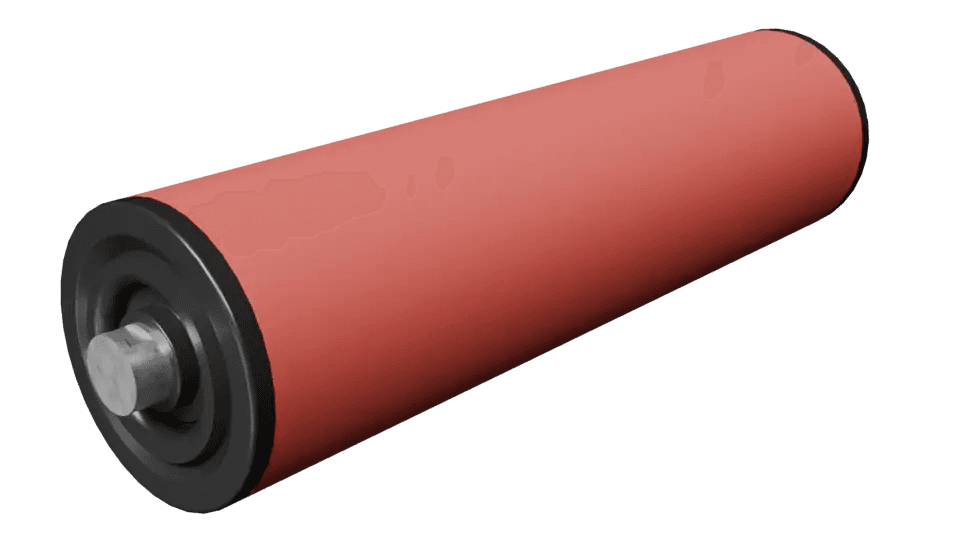

Hybrid rollers suit heavy-duty applications where the belt could come into contact with a roller's housing edge, and inaccessible areas where frequent maintenance inspections are impractical.

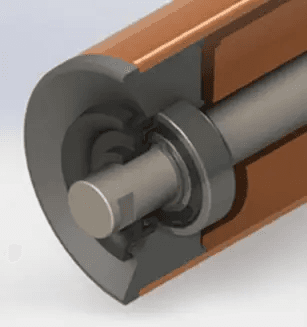

Fibre-filled nylon PA66 housings, with a high Vicat softening point and heat-deflection temperature, are press-fitted into standard steel conveyor tube. If the belt ever contacts a housing edge, the nylon housing reduces the risk of belt damage.
Belt-friendly housings on a steel tube.
Five design features that determine bearing and roller life.
Belt friendly
Nylon housings reduce the risk of belt damage from contact with a housing edge.
Locked-in bearing housings
The press-fitted housing assembly prevents housing-to-shell failures and the resultant damage to belt and frame.
Proven 4-stage sealing system
Centrifugal seal, labyrinth seal, storage seal and bearing seal work in series to keep contamination out and grease in, for maximum roller life.
Low out-of-balance value
Accurate manufacture and low tube TIR keep the out-of-balance value low, for smooth running at belt speed.
Concentrically machined & ground spindles
Axle spindles are CNC-machined and ground concentric to the shaft, so the bearing runs true on its seat.
Components and options
From the tube to seals, every component is listed below with its grade and standard sizes.
| Component | Specification |
|---|---|
| Steel tube · SANS 657/3 |
Three standard diameters.
⌀127⌀152⌀178
|
| Bearing housings | Injection-moulded glass-fibre-reinforced nylon PA66, press-fitted into the tube |
| Steel shaft | CNC-machined, with ground bearing spindles from 25 to 45 mm |
| Bearings | Standard deep-groove sizes.
63056306630763086309
|
| Seals | Centrifugal, labyrinth, storage and bearing seal |
| Options | Sensor Seals, hollow shafts |
All dimensions in mm, nominal. Confirm application-specific details with Lorbrand engineering.
Quality control and testing
Dimensional inspection, housing press-fit, TIR and roller running checks, carried out to the inspection and test plan for each order.
